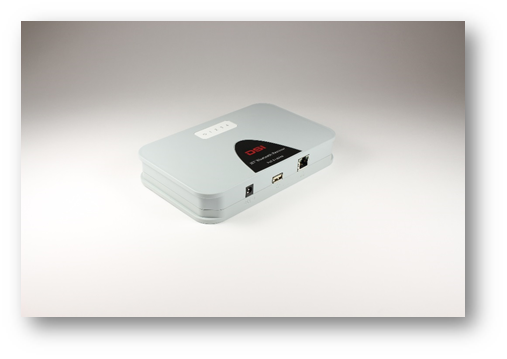

JET PoE Receiver
DSI Part Number: 272-0241-001

Improvements:

• Less extended periods of data dropout
• Improved radios in receiver can more efficiently find and fill channels
• Power over Ethernet
• Convenient single cable to deliver power and deliver data from receiver to acquisition system
• Protection against electro-static discharge
• Robust and resilient protection against electro-static damage during study and handling
• Integrated mounting system
• Holes for mounting screws are integrated into receiver body

Compatibility:

• Ponemah 5.20-SP8 and later
• New (272-0241-001) and old (272-0240-001) JET receivers may be used on the same system
• All JET device models are compatible with all JET receivers, both legacy and the new JET PoE receiver

Capacity:

The new JET receiver can accommodate up to six JET-EA-BP, four to six JET-3ETA-BP or four JET-5ETA-BP devices. The receiver needs to be placed in the animal room but does not need to be in an animal cage. Multiple receivers can be used in the same room to record from a total of 36 JET devices per room via multiple systems. (The device limit per room for JET-5ETA-BP devices is 18.)

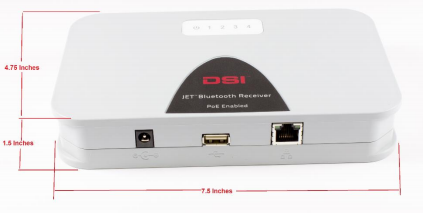

Size:

Additional Information:

https://support.datasci.com/hc/en-us/articles/115011352487-JET-User-Manuals
