Aeroneb Nebulizer Head Specifications
Aerogen® Lab |

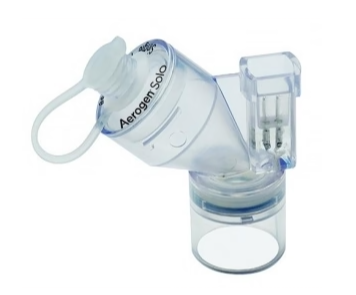

Aerogen® Solo |
||
|
|
|
||
| Physical | |||
| Nebulizer Unit dimension: |
45 mm H x 50 mm W x 50 mm D (1.77 in. H x 1.97 in. W x 1.97 in. D) |
67 mm H x 48 mm W x 25 mm D (2.6 in. H x 1.88 in. W x 1.1 in. D) |
|
| Control Module dimensions: |
33 mm H x 75 mm W x 131 mm D (1.3 in. H x 2.9 in. W x 5.2 in. D) |
33 mm H x 75 mm W x 131 mm D (1.3 in. H x 2.9 in. W x 5.2 in. D) |
|
| Control Module cable: | 1.8 m (5.9 ft.) |
||
| Nebulizer Unit weight: | 25 g (0.88 oz.) nebulizer unit and filler cap |
13.5 g (0.5 oz.) nebulizer unit and plug |
|
| Control Module weight: | 178 g (6.3 oz.), including cable |
230 g (8.1 oz.), including battery and cable |
|
| Nebulizer Unit capacity: | 10 mL |
6 mL |
|
| Power | |||
| Power source: |
AC/DC adapter (input 100 to 240VAC 50 – 60Hz, output 9V) OR an external 9V DC power supply |
AC/DC adapter (input 100 to 240VAC 50 – 60Hz, output 9V) OR an internal rechargeable battery |
|
| Power consumption: | <2.57 Watts |
<8 Watts (charging), 2.0 Watts (nebulizing) |
|
| Performance | |||
|
Standard Volume Median Diameter (Med VMD) Nebulizer Unit |
Small Volume Median Diameter (Low VMD) Nebulizer Unit |
Small Volume Median Diameter (Low VMD) Nebulizer Unit |
|
| Part Number: | 601-2307-001 |
601-2306-001 |
601-2406-001 |
| Flow rate: | >0.2 mL/min |
>0.1 mL/min |
>0.2 mL/min |
| Particle size: | VMD between 4.0 µm and 6.0 µm |
VMD between 2.5 µm and 4.0 µm |
VMD between 2.5 µm and 4.0 µm |
| Residual volume: | <0.2 mL |
<0.2 mL |
Average <0.1 mL for 3mL Dose |
|
Additional Notes:
|
Autoclavable |
Autoclavable |
28-day use, disposable |
