Ponemah Video Option

DSI partnered with Noldus Information Technology and Ponemah is utilizing Media Recorder to record video data

• You can Synchronize up to eight video cameras with physiologic signals for better interpretation of your data
• Effortlessly view, browse, and synchronize data using sophisticated graphic and numeric displays
• For CNS studies, bring your synchronized video and physiologic data into DSI’s NeuroScore software for further analysis

Video option is available for Ponemah v5.40 or greater

• Supports up to 8 cameras
• Each camera can be used to record - one or multiple subjects

For an overview of the version compatibility see our Ponemah System Compatibility Matrix and Noldus Version vs Ponemah Version Compatibility

• Video and physiological data are synchronized within +/- 1 second
• Video playback is launched in Ponemah during a review session
• File sizes are mainly determined by
  • Video Quality
  • Frame Rate
  • Resolution
  • How active the subjects are
    (changes from frame to frame)

FinePointe Video Option

Collecting synchronized video data from ONVIF network cameras between FinePointe™ and the Panlab Record-it Media software is a feature for FinePointe™ since version 2.8 and Record-it version 1.0.00.  While the two programs run separately, the FinePointe™ software has integrated the user interface for Record-it to create an easy user experience. This document provides instructions on setting up the cameras and configuring the cameras within FinePointe™.  See Record-IT! with FinePointe Manual for additional instructions

For an overview of the version compatibility see our FinePointe Software Compatibility Matrix

Camera Models

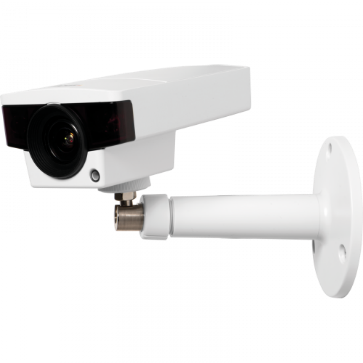

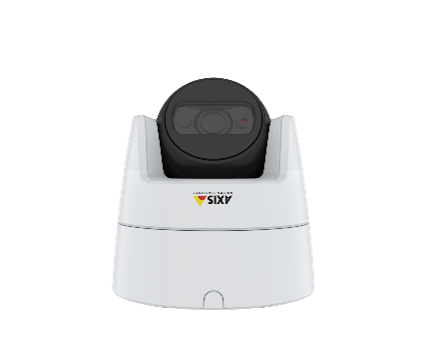

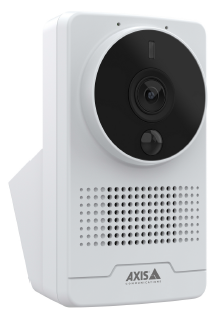

AXIS M1145-L	AXIS M3115-LVE	Axis P1375	AXIS M1075-L
Max res. 1920x1080	Max res. 1920x1080	Max res. 1920x1080	Max res. 1920x1080
Max FPS 25/30	Max FPS 25/30	Max FPS 50/60	Max FPS 25/30
IR built-in	IR built-in		IR built-in with 2-way communication
Supported until 2027-11-30	Replaces M1145-L		Replaces M3065-V
