The ACQ-7700 Platform has a unique sampling mechanism employing a combination of sampling rate and span to provide optimal resolution for many applications:

• Cardiovascular
• Hemodynamic
• Respiratory
• Isolated Organ
• Central Nervous System

DSI ACQ-7700 digital signal conditioners and accessories accelerate your research by delivering better resolution of data using the latest Digital Signal Processors. Our signal conditioners filter the data, eliminating inaccuracies and signal offsets, preventing issues that often arise from analog components.

In combination with Ponemah Analysis Software you achieve stable, accurate and robust data acquisition and analysis routinely performed in physiology, pharmacology and toxicology laboratories.

State-of-the-Art Digital Technology:

• Easy software-based setup
• 16 bit resolution
• Less noise, less drift, better stability
• Universal input for multiple physiological signals
• Low cost per channel
• Compact design with flexible application-specific signal conditioner modules available (2, 6, and 13 slot chassis available)
• Synchronization of your hardwired data directly with DSI implantable telemetry data
• CFR21 Part 11 compliance —all data and changes saved in a configuration file and audit log
• USB interface to workstation

Card Model	13-7715-59 Universal XE Signal Conditioner	13-7715-35 Carrier signal conditioner	13-7715-02 Advanced 32	13-7715-04 Advanced 4 (ABDC 4)	13-7715-70 Digital Communication Module
Description	All-purpose or “Universal” input for physiological signals. Handles a wide variety of signals such as biopotential signals, pulmonary pressure and flow signals, blood pressure and flow signals, temperature signals, isolated tissue and a variety of pressure or tension measurement.	Designed specifically for use with the Validyne DP-45 and DP-250 Differential Pressure Transducers for accurate pulmonary pressure, volume and flow measurements.	Up to 32 input channels available with the ability to select uni-polar, bi-polar, single-ended or differential measurements. *Cable kits offered	Standard laboratory BNC connections easily allow high level signals to be brought into Ponemah for association with other signals. *Cable kits offered	Provides a communication link with the external BIO12 POD and the Multi-Lead ECG POD. Delivers an ECG sync pulse using standard TTL logic when used with the Multi-Lead ECG POD.
# Channels	4	4	32 Single-ended or 16 Differential	4 Single-ended
Type of Coupling	AC/DC/Gnd	AC	DC	DC
Maximum Rate	100K Samples/Second per channel	5K Samples/Second per Channel	1250K Samples/Second Aggregate	250K Samples / Second per Channel
Excitation Voltage	2.5, 5, 7.5VDC ±1%, and 10VDC ±5% @15mA, OFF	Synchronized to Excitation Voltage 5VRMS @ 5KHz for use specifically
Digitizer	Per Channel	Per Channel	Multiplexed	Multiplexed
Options/ Accessories	Three lead ECG cable and assorted lead wires; YSI 700 Series temperature probe; Isolated/Defibrillation protected ECG Probe, General Purpose Probe; BD Medical P23, and disposable pressure transducers; Headstage amplifiers and a variety of other transducers, equipment and cabling.	Validyne DP45 and DP250 series Differential Pressure Transducers.	Input terminal box with BNCs for connection to most laboratory equipment.	BNC cable kits for connection to most laboratory equipment. Hans Rudolph (See Ponemah 5.x - PhysioTel Digital L11R Calibration Process)

BIO12 POD and Multi-Lead ECG POD

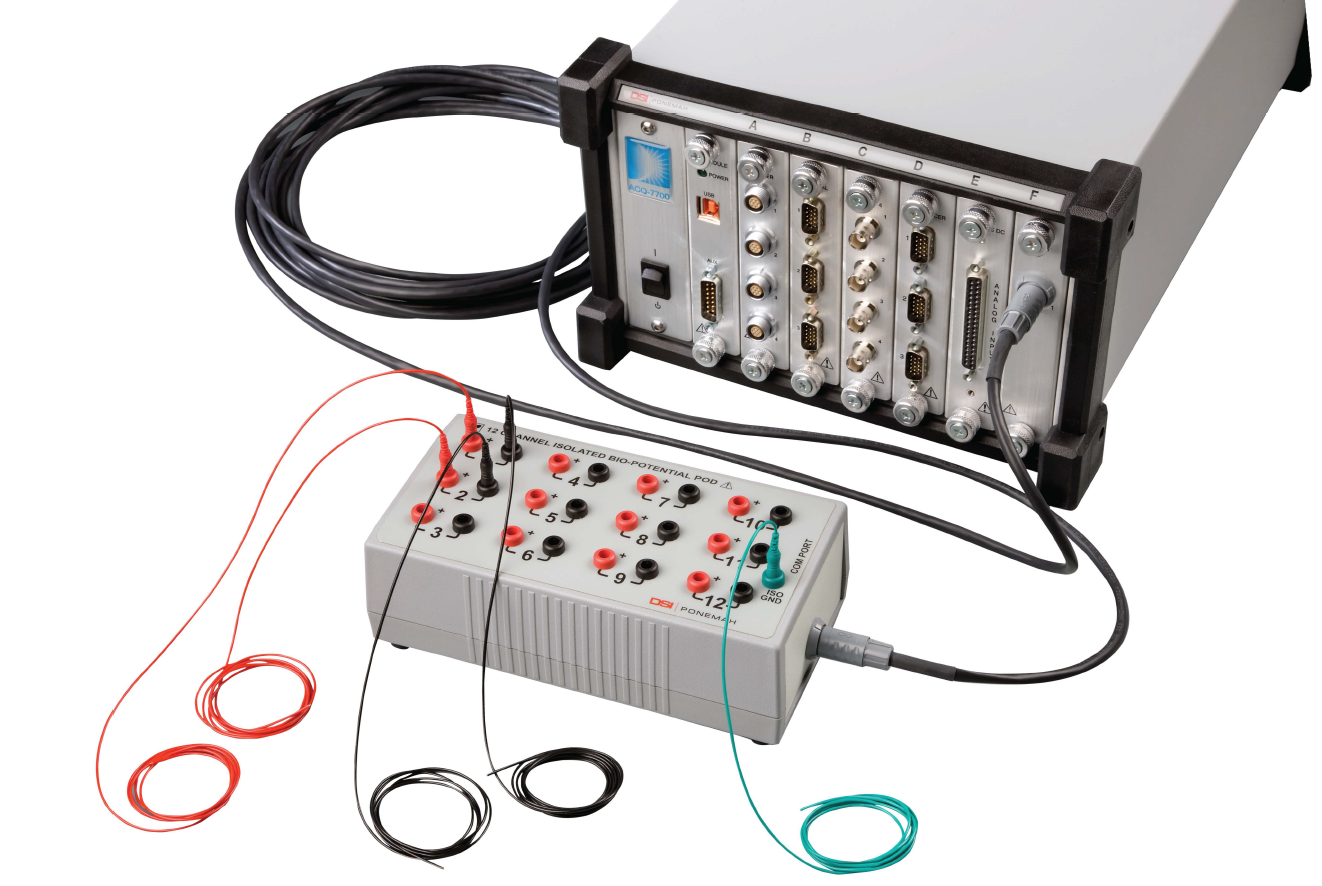

13-7770-BIO12 12 Channel Isolated Biopotential Pod

Satisfy a wide variety of biopotential applications including Langendorff preparations, isolated heart preparations and open-chested models where electrograms or other biopotentials are monitored.

• 12 differential pairs
• Input Range: 40uV to 40mV Full Scale
• Input Impedance: >10M Ohm
• Low Pass filter settings: 100, 300, 1,000Hz
• High Pass filter fixed at: 0.05Hz

13-7770-ECG12 Multi-Lead ECG POD

Accurately conditions up to twelve simultaneous surface ECG leads using a standard industry

10-lead cable with various attachments.

• ECG presentations: Lead I, II, III, aVR, aVL, aVF, 6V-leads
• Selectable high fidelity filtering from 0.05 – 500Hz
• Patient isolation
• Defibrillation protected with baseline reset
• Leads off detection
• TTL output for QRS pulse to trigger external equipment

Chassis Options

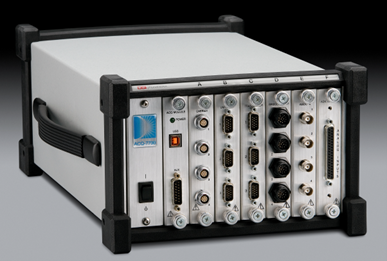

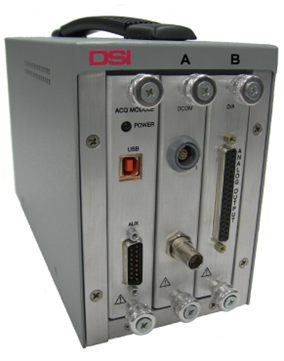

The three options for a chassis are the 6 slot (PNM-P3P-7002), the 2 Slot (PNM-P3P-7002XS), and the 13 Slot (PNM-P3P-7002XE)
